Air-core.Non magnetic saturation.
SMD type. Easy to install.
RoHS compatible.
Operating temperature : -40℃~+220℃.
Reading
Part number 料号 | Inductance 电感量 nH±20% | DCR 最大直流电阻 mΩ | quality factor 品质因数 Q 频率（MHz） | SRF | Irms 温升电流 A | Length mm | Width mm | Height mm | |
| CS1212-220ML | 22 | 0.55 | 200 | 100 | 918 | 57 | 11.5 | 12 | 6.6 |
| CS1212-420ML | 42 | 0.77 | 195 | 50 | 557 | 52 | 11.5 | 12 | 7.6 |
| CS1212-660ML | 66 | 0.99 | 200 | 50 | 480 | 48 | 11.5 | 12 | 8.8 |
| CS1212-900ML | 90 | 1.2 | 175 | 50 | 444 | 45 | 11.5 | 12 | 10.4 |
| CS1212-111ML | 117 | 1.4 | 165 | 50 | 399 | 44 | 11.5 | 12 | 11.3 |
| Standard products are stocked： |  Buy in stock in small quantities | ||||||||
Remark： ① Inductance is measured with a LCR meter Agilent 4284A or equivalent.Test frequency at 1MHz ② DC resistance is measured with keithley 580 Milliohm Meter , or equivalent.Reference ambient temperature 25°C ③ Q measured at the specified frequency using an Agilent/HP 4291A impedance analyzer or equivalent. ④ SRF measured using an Agilent E5061B network analyzer and an Agilent 16193A test fixture. ⑤ Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. ⑥ Electrical specifications at 25°C | |||||||||

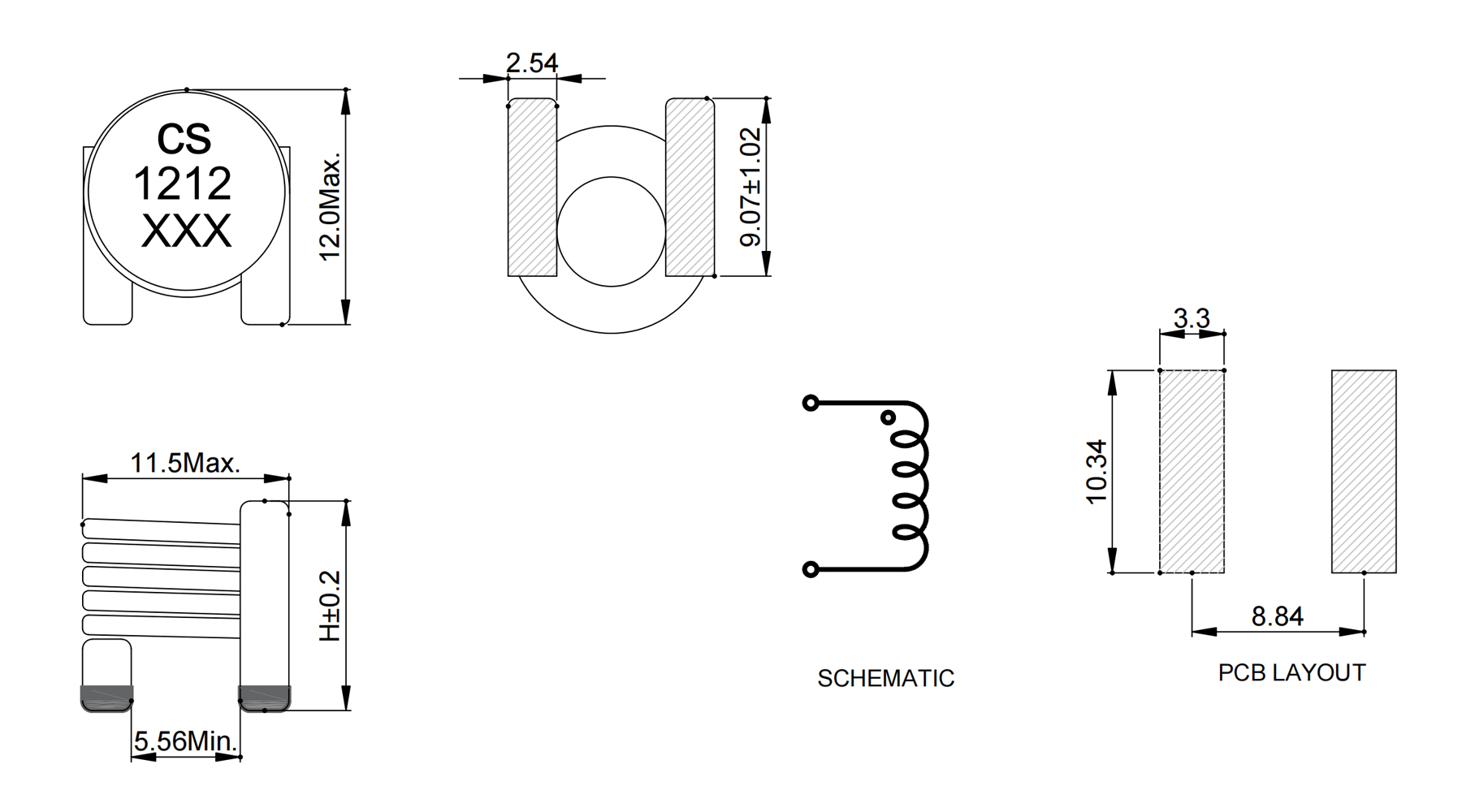

| Dimensions | |
 | |
| Electrical Characteristic Curve | |
 |
