Air-core. No magnetic saturation.
SMD type. Easy to install.
RoHS compatible.
Operating temperature : -40℃~+220℃.
Reading
Part number 料号 | Inductance 电感量 nH±20% | DCR 最大直流电阻 mΩ | quality factor 品质因数 Q 频率(MHz) | Irms 温升电流 A | SRF 自谐频率 （MHz） | 长度 mm | 宽度 mm | 高度 mm | |
| CS1010-230ML | 23.5 | 1.2 | 95 | 100 | 26.0 | 923 | 9.5±0.5 | 8.8±0.5 | 3.6 |
| CS1010-460ML | 46.5 | 1.6 | 150 | 100 | 25.5 | 526 | 9.5±0.5 | 8.8±0.5 | 4.1 |
| CS1010-790ML | 79 | 2.1 | 135 | 50 | 25.0 | 386 | 9.5±0.5 | 8.8±0.5 | 4.8 |
| CS1010-111ML | 111 | 2.7 | 150 | 50 | 22.0 | 382 | 9.5±0.5 | 8.8±0.5 | 5.6 |
| CS1010-141ML | 146 | 3.3 | 140 | 50 | 19.3 | 433 | 9.5±0.5 | 8.8±0.5 | 6.1 |
| Standard products are stocked： |  Buy in stock in small quantities | ||||||||
Remark ① Inductance is measured with a LCR meter Agilent 4284A or equivalent.Test frequency at 1MHz ② DC resistance is measured with keithley 580 Milliohm Meter , or equivalent.Reference ambient temperature 25°C ③ Q measured at the specified frequency using an Agilent/HP 4291A impedance analyzer or equivalent. ④ SRF measured using an Agilent E5061B network analyzer and an Agilent 16193A test fixture. ⑤ Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. | |||||||||

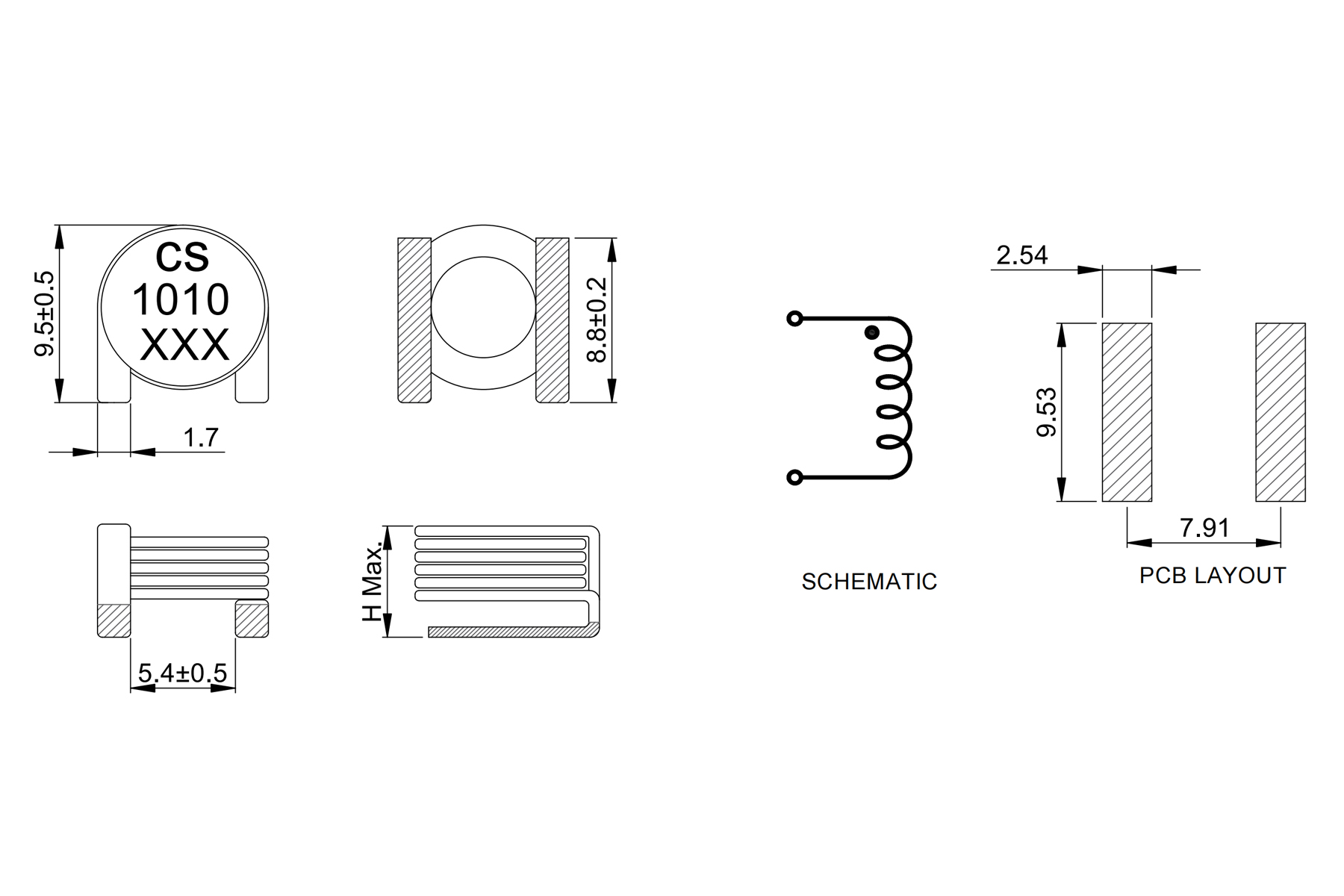

Dimensions | ||||
 | ||||
Electrical Characteristic Curve | ||||
 |
