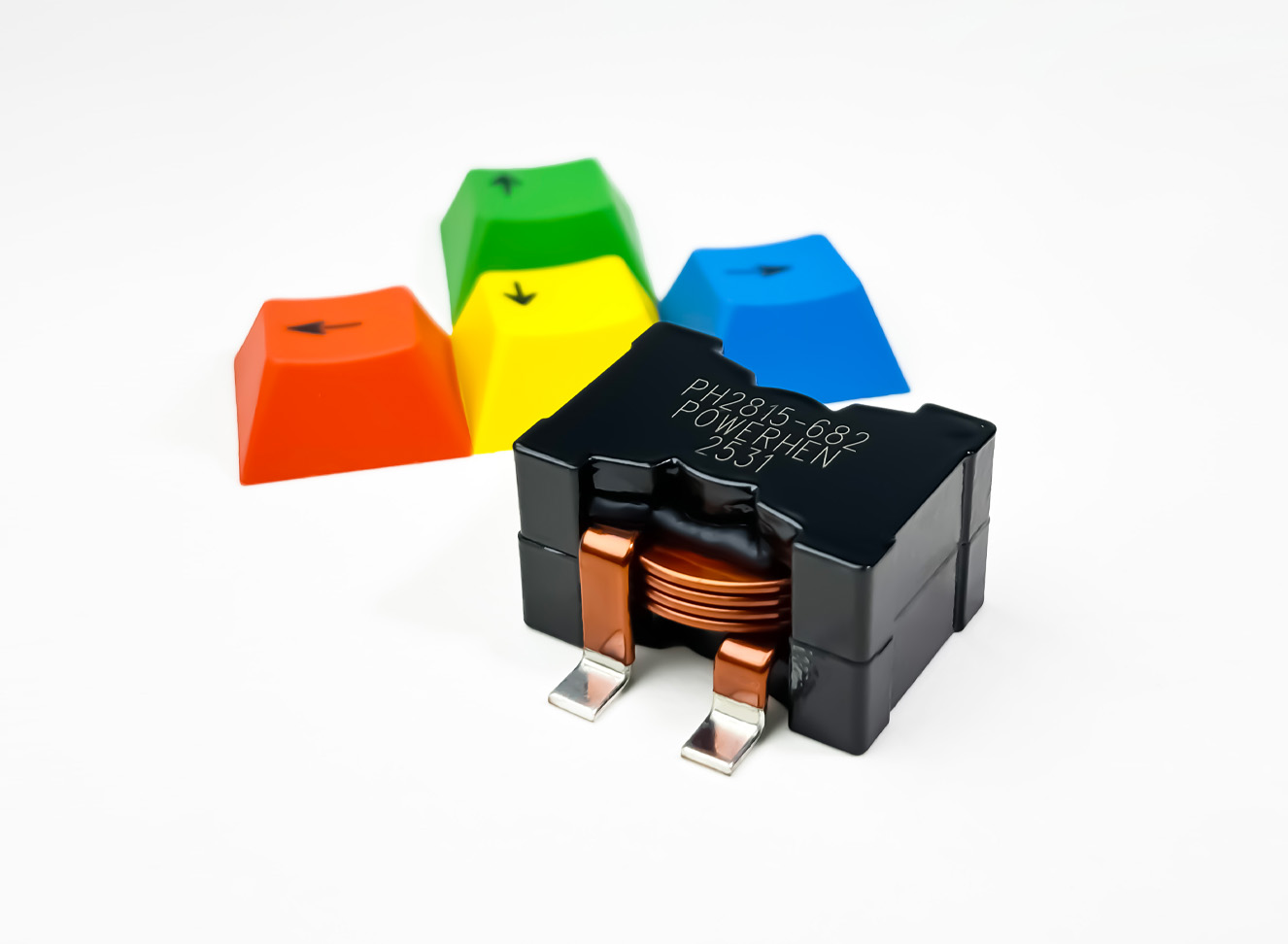

Using flat wire and patch type

Closed magnetic circuit packaging, low radiation

High current, low resistance

Operating Temperature: -40℃~+125℃

Tray packaging: -40 ° C to+80 ° C

Resistance to welding heat up to three 40 second reflow cycles+260 ° C, with components cooled to room temperature between cycles

Moisture Sensitivity Level (MSL) 1（Infinite workshop lifespan at <30°C / 85% relative humidity）

Efficient DC/DC converter

Single phase and multi-phase buck converters

Audio filtering applications

Optimization of High Current Boosting Applications

Part number 料号	Inductance 电感量 μH±10%	DCR 直流电阻 mΩ	SRF 自谐频率 MHz	Isat 直流饱和电流 A	Irms 温升电流 A	Length mm	Width mm	Height mm
PH2815-152KL	1.5	1.31	43.24	110	36	28	27	15.4
PH2815-222KL	2.2	1.31	32.8	85	36	28	27	15.4
PH2815-332KL	3.3	1.31	26.44	57	36	28	27	15.4
PH2815-472KL	4.7	1.31	21.56	44	36	28	27	15.4
PH2815-682KL	6.8	1.31	17.03	30	36	28	27	15.4
PH2815-103KL	10	1.31	13.55	20	36	28	27	15.4
PH2815-153KL	15	1.31	10.73	13	36	28	27	15.4
PH2815-223KL	22	1.31	8.06	7.5	36	28	27	15.4
PH2815-333KL	33	1.31	6.29	4.5	36	28	27	15.4
Standard products in stock：		Small batch spot purchase
Remarks： ① The inductance test adopts Agilent 4284A digital bridge or equivalent instrument; Test frequency 500KHz ② The direct current resistance test uses a Keithley 580 milliohmmeter or equivalent instrument; Environmental temperature 25 ° C ③ SRF was measured using Agilent 4395A network analyzer and Agilent 16193A test fixture. ④ The direct current is at 25 ° C, and loading causes the specified inductance to decrease from a value without current. ⑤ The current that causes the specified temperature to rise from an ambient temperature of 25 ° C. This information is for reference only and does not represent the absolute maximum rated value. ⑥ Electrical specifications at 25 ° C

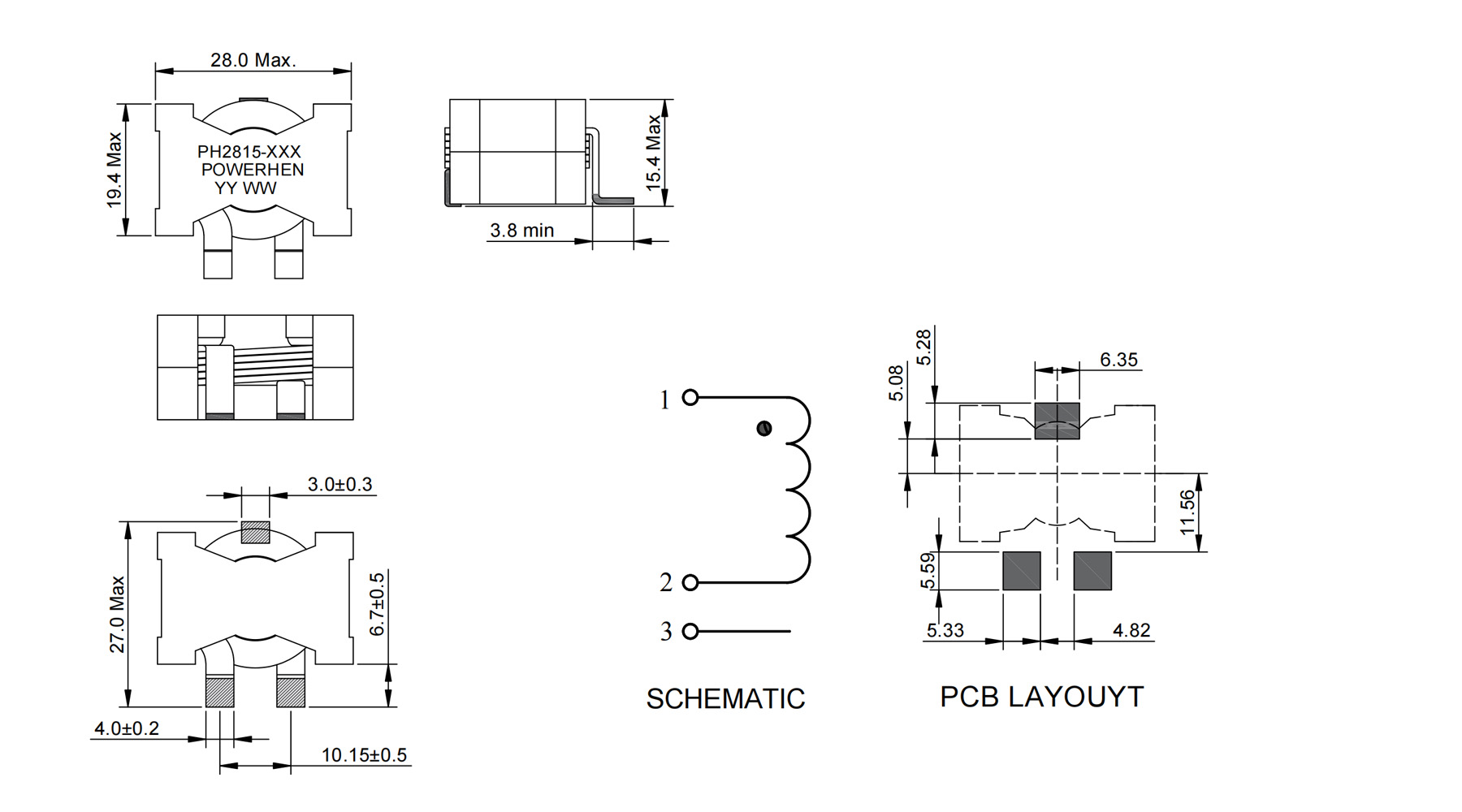

结构尺寸/Dimensions

规格尺寸-PH2815

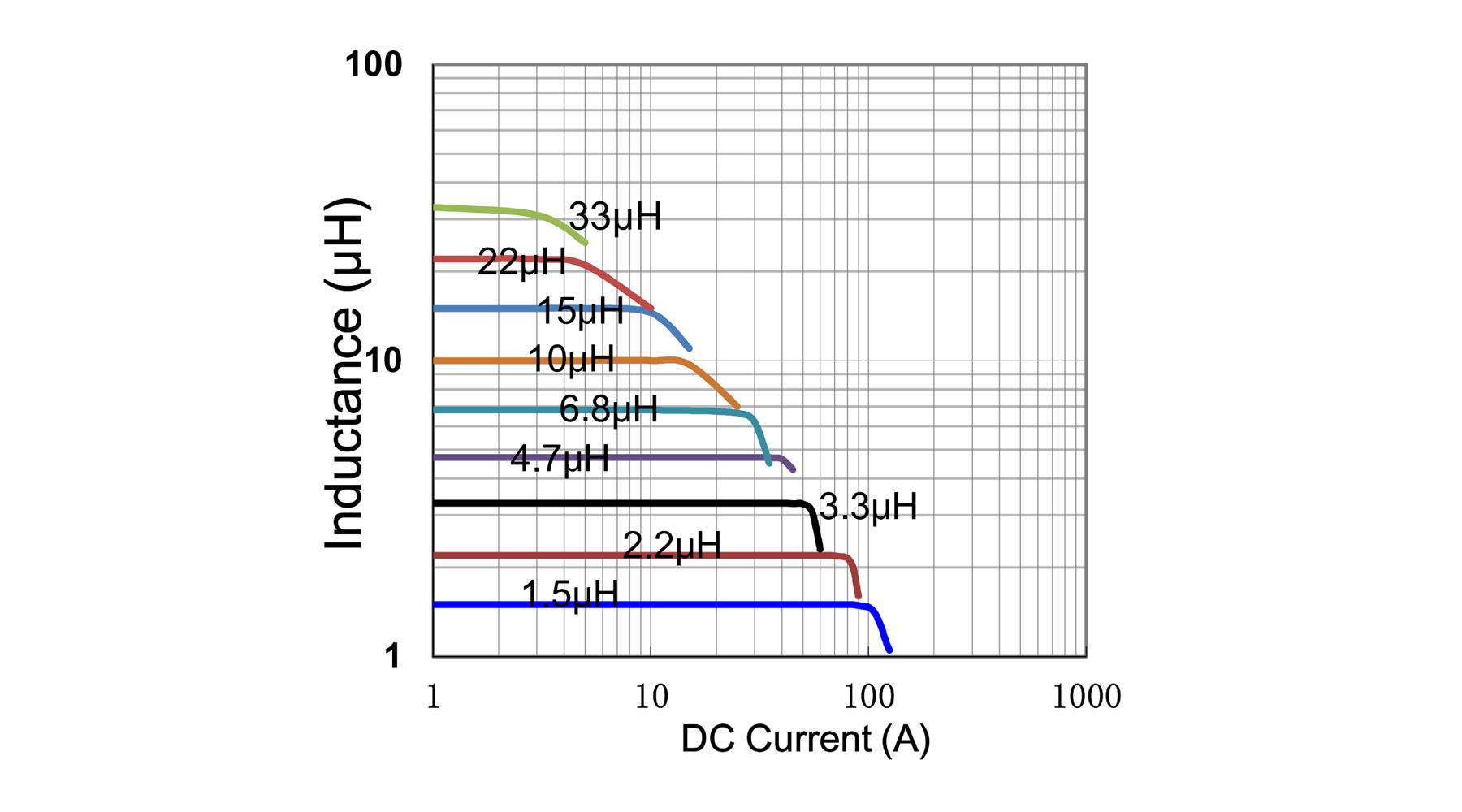

电气特性曲线/Electrical Characteristic Curv
